ConSurf | Evolutionary conservation profiles of proteins, which analyze the sequence conservation of proteins and color the model by the result, it could be helpful if the proteins you studied are conserved on structure but vary on the sequence.

Analysis conservation#

All you need to prepare is a protein model, you need the sequence at least if you don't have one, the structure can be predicted from it.

If you have a multiple sequence alignment(MSA) file, you can upload it, and then the sequence will be used to generate conservation analysis results.

Then your model will be colored from the results.

Customize color#

There is no choice of color on the model in ConSurf, but you can do it with Pymol.

1. Download the result for Pymol.

2. Generate a color ramp on RAMPGEN.COM, then copy the JSON format and replace the color in the script:

   :::grid {cols=2,rows=1,gap=12,type=images}


   :::

3. Paste your color ramp into the script and save it as set_colors.py:

   Copy

   # This script was completed with the help of ChatGPT
   color_data = [
          # Paste your color ramp here.
       ]

   # Define colors and set colors to corresponding objects
   for i, item in enumerate(color_data, start=1):
       hex_color = item['color']
       # Convert HEX to RGB
       r, g, b = int(hex_color[1:3], 16), int(hex_color[3:5], 16), int(hex_color[5:], 16)
       rgb = (r/255.0, g/255.0, b/255.0)

       # Set the color
       color_name = f"color_{i}"
       pymol.cmd.set_color(color_name, rgb)

       # Apply color to objects
       object_name = f"all_group_{i}"
       pymol.cmd.color(color_name, object_name)

   # Ensure that views are updated
   pymol.cmd.rebuild()


4. Your script should look like this:

   Copy

   color_data = [
           {
                "values": 0,
                "color": "#F6936F"
           },
           {
                "value": 12.50,
                "color": "#F8AE93"
           },
           {
                "value": 25.00,
                "color": "#FAC9B7"
           },
           {
                "value": 37.50,
                "color": "#FCE4DB"
           },
           {
                "value": 50.00,
                "color": "#FFFFFF"
           },
           {
                "value": 62.50,
                "color": "#DDEBF1"
           },
           {
                "value": 75.00,
                "color": "#BCD7E4"
           },
           {
                "value": 87.50,
                "color": "#9BC3D6"
           },
           {
                "value": 100,
                "color": "#7AAFC9"
           }
       ]

   # Define colors and set colors to corresponding objects
   for i, item in enumerate(color_data, start=1):
       hex_color = item['color']
       # Convert HEX to RGB
       r, g, b = int(hex_color[1:3], 16), int(hex_color[3:5], 16), int(hex_color[5:], 16)
       rgb = (r/255.0, g/255.0, b/255.0)

       # Set the color
       color_name = f"color_{i}"
       pymol.cmd.set_color(color_name, rgb)

       # Apply color to objects
       object_name = f"all_group_{i}"
       pymol.cmd.color(color_name, object_name)

   # Ensure that views are updated
   pymol.cmd.rebuild()

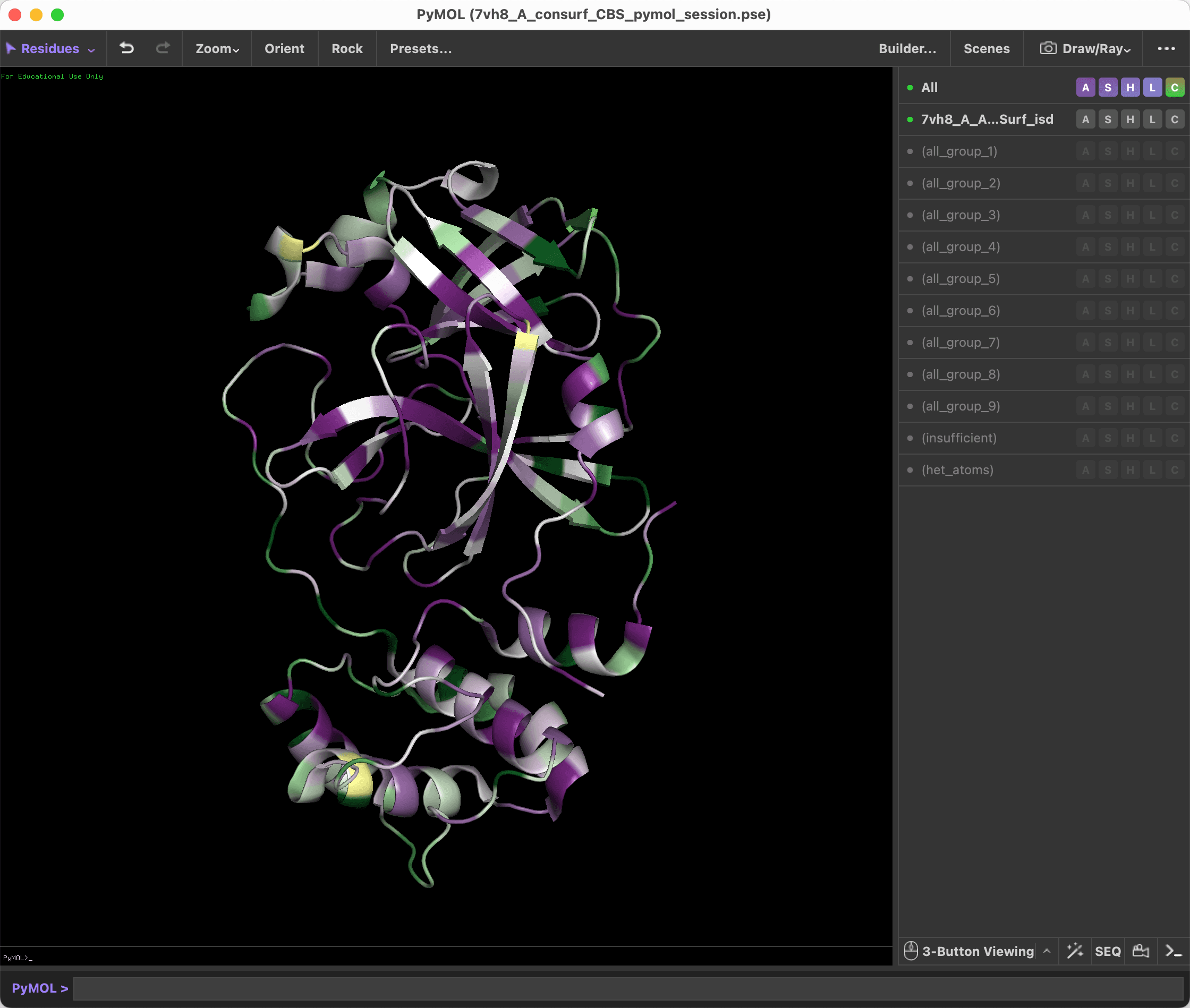

5. Load the ConSurf result in Pymol, and run the script from 'File -> Run Script...'.

   :::grid {cols=2,rows=1,gap=12,type=images}


   :::
